(last updated: 2006-03-09)

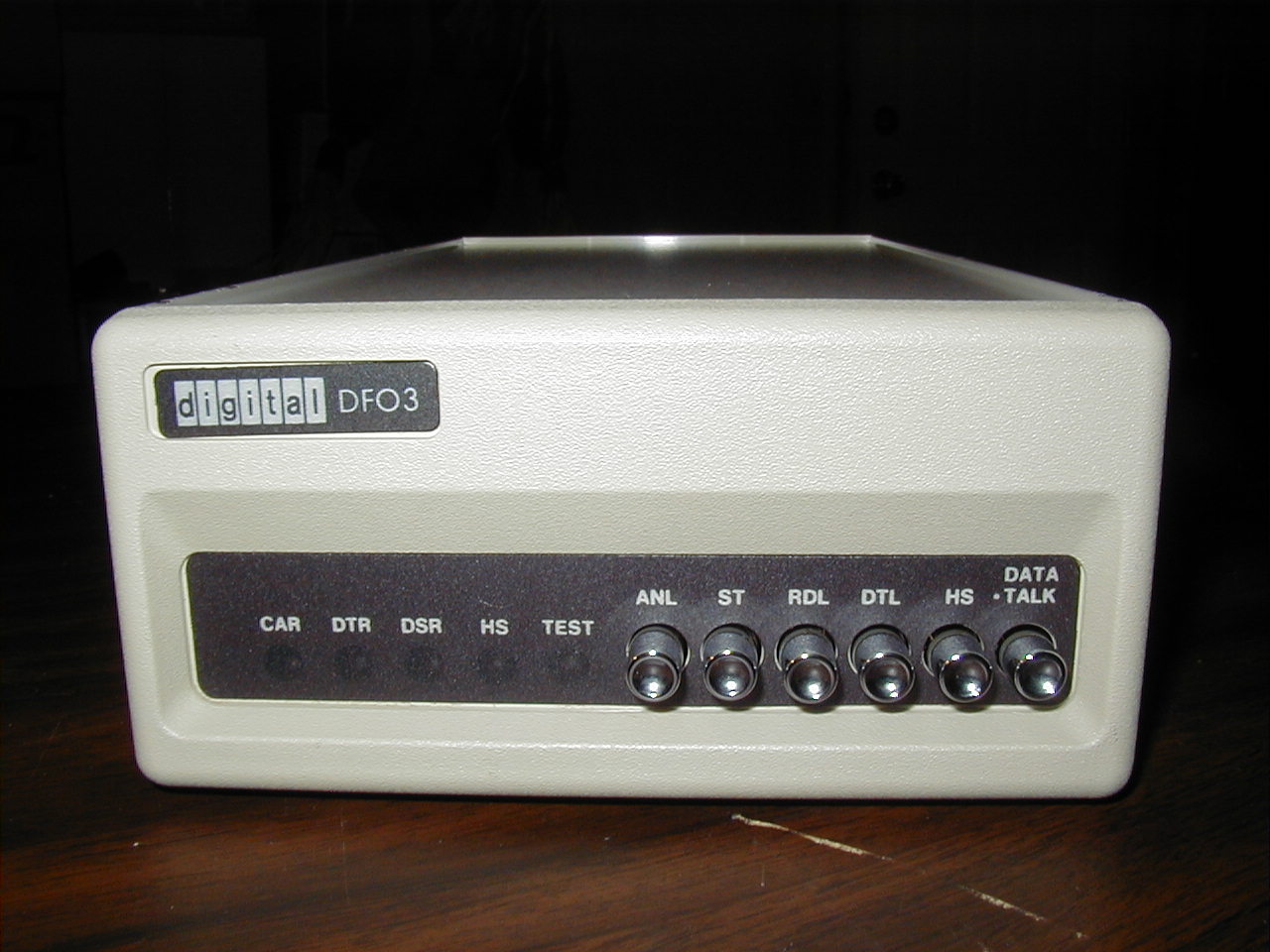

DEC DF03 Modem

Model: DF03
Serial No: ASG5701
Mfg date: ?

Acquisition

February 20, 2006
Longmont, Colorado
This is one of several systems that were part of a single, sizable pickup

Operational Status

* untested pending PS checkout *

Description

This is a 300 and 1200 baud capable modem.

Cleanup

March 8, 2006

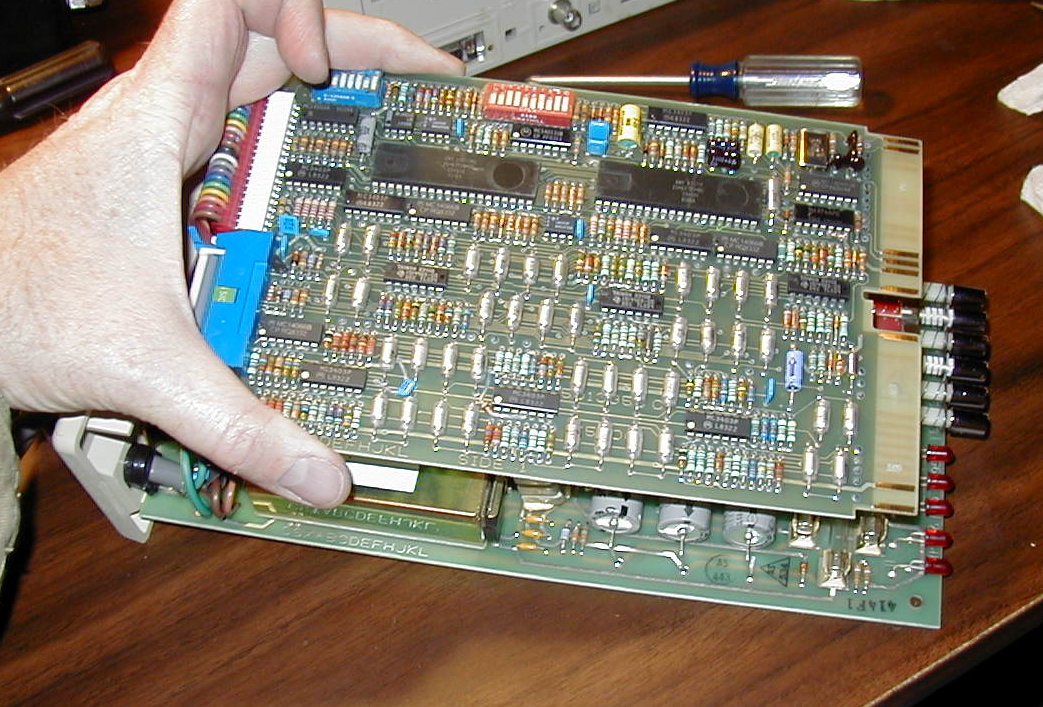

The unit was dusty, of course, but otherwise looked very good. I vacuumed and 'baby wiped' the whole unit externally, and then removed the rear cover screws which allow the internals to slide out. There are two boards, a power supply board, and a logic board. The logic board is exactly the same form factor, right down to the two rows of gold contacts that are unused, as a typical dual width module from DEC! I reassembled the unit, but did not attempt to power it up.

Test out

(date)

Needed or Missing Items

Still To Do

checkout power supply
